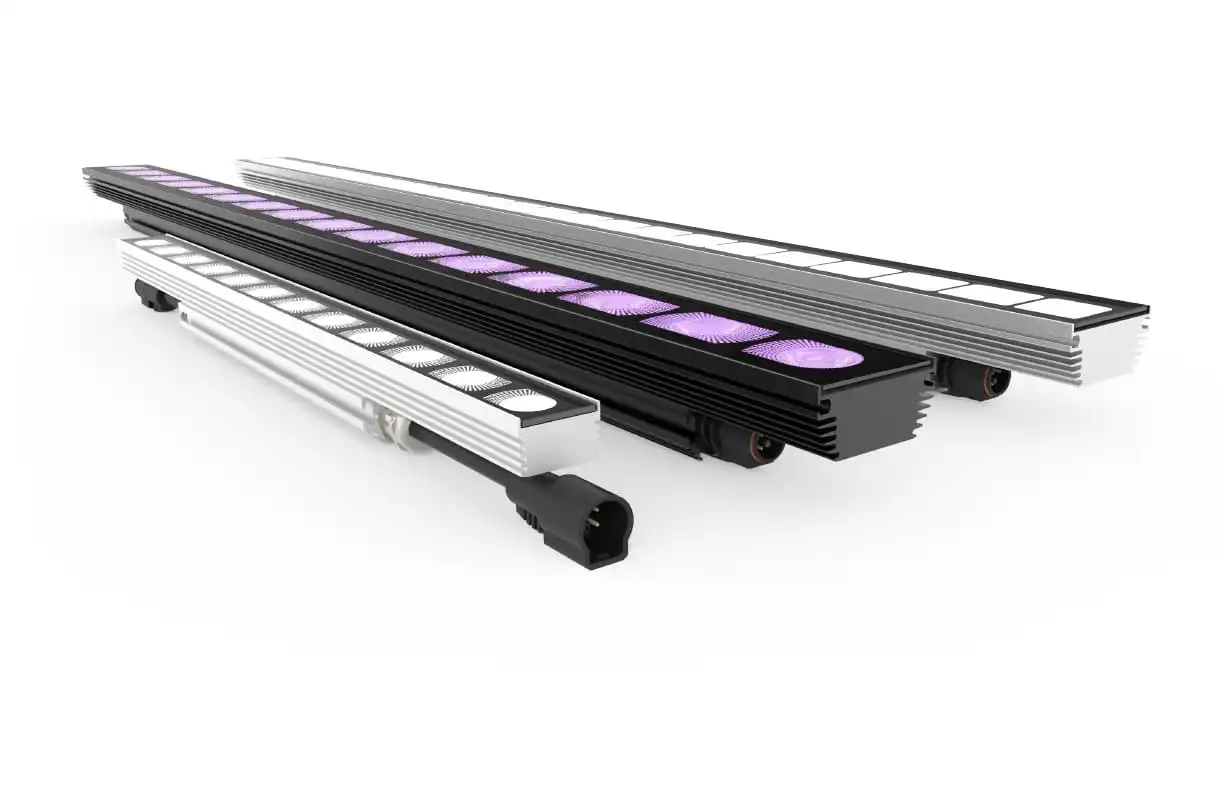

Monochromatic Linear Wall Washing and Grazing Exterior LED Lighting
Key Features
- Up to 3,755 Delivered Lumens /m (1,144 lm/ft)
- 3 Voltage Options: AC Line voltage, ELV 48VDC, INFINITY® 380VDC
- LED Pitch Maintained Within and Between Luminaires
- Optically Clear Tempered Glass
- Versatile Mounting Slot for Array of Mounting Options
- 300 mm (1 ft) Addressability
- Compact and Lightweight
- UNIBODY™ Technology for industry-leading proprietary sealing against water ingress
- INFINITY® Technology enables exceptionally long lighting circuits
- Diffusing film creates uniform light adjacent to the luminaire
- Excellent LED to LED color consistency
- Through-wiring for end-to-end connection and plug-and-play with FL Series
Specifications
DELIVERED LUMENS: 3,755 lm/m (1,144 lm/ft)
LIGHT SOURCE: 6 x High Power LEDs /300 mm (1 ft)
CRI: >80
POWER: 3W, 5W, 10W, or 15W /300 mm (1 ft)
INPUT VOLTAGE: ELV (48VDC), AC (120VAC, 277VAC, or 220~240VAC), or INF (380VDC)
SIZE (WxH): 71 x 63 mm (2.8 x 2.5 in)
LENGTH: 300, 600, 900, 1200, or 1500 mm (1, 2, 3, 4, or 5 ft)
WEIGHT: 1.0 kg/ 300 mm (2.2 lbs/ 1ft)
ADDRESSABILITY: 300 mm (1 ft)
CONTROL: DMX, DALI or 0~10V
PROJECTED LIFETIME: L70 > 100,000hrs @ Ta = 25°C (77°F)
OPERATING TEMPERATURE: -40°C to +50°C (-40°F to +122°F)
ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
IEC CLASS: Class 1 LED Luminaire
